Poclain MS05 High Flow Hydraulic Motor Radial Piston shaft Smooth And Reliable Operation

Name: Poclain MS05 High Flow Hydraulic Motor Radial Piston shaft Smooth And Reliable Operation
Brand: Helm Tower
Price: 1 USD

Poclain MS05 High Flow Hydraulic Motor Radial Piston shaft Smooth And Reliable Operation Manufactures

Brand Name : Helm Tower

Model Number : MS05

Certification : ISO 9001

Place of Origin : Ningbo

MOQ : Negotiation

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 units per month

Delivery Time : 7-15 working days

Packaging Details : Standard Export Wooden Case

Type : piston motor

Color : customized

Speed : 0-200 r/min

Torque : 1405-2092 N.m

Rated pressure : 25 MPa

Max. pressure : 40 MPa

Contact Now

Poclain MS05 High Flow Hydraulic Motor Radial Piston shaft Smooth And Reliable Operation

Features:

MS05 Hydraulic Piston Motor
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Modular design, High efficiency, High pressure and smooth running even at very low speeds,

Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.

MS05 Displacement Diagram

Type Displacement	MS05-8		MS05-9	MS05-0		MS05-1		MS05-2
	Full/Semi		Full/Semi	Full/Semi		Full/Semi		Full/Semi
Displacement(ml/r)	376	188		468	234	514	257	560	280
Max power(kw)	25	17		25	17	25	17	25	17
Pressure discrepancy 10MPa Torque (N.m)	562	275		699	343	768	376	837	410
Rated torque(N.m)	1405			1749		1921		2092
Rated pressure(MPa)	25			25		25		25
Max pressure(MPa)	40			40		35		35
Rated speed(r/min)	90			90		85		80
Speed range(r/min)	0-200			0-200		0-190		0-180

Poclain MS05 High Flow Hydraulic Motor Radial Piston shaft Smooth And Reliable Operation

Application:

Engineering Machinery: Cinder,Skid steer loader, Explosion- proof Forklift,Forklift,Beam Carrier/Hoisting Machine.

Farming Machinery: Mini Farming Vehicle, Combine Harvesters and Cotton Pickers.

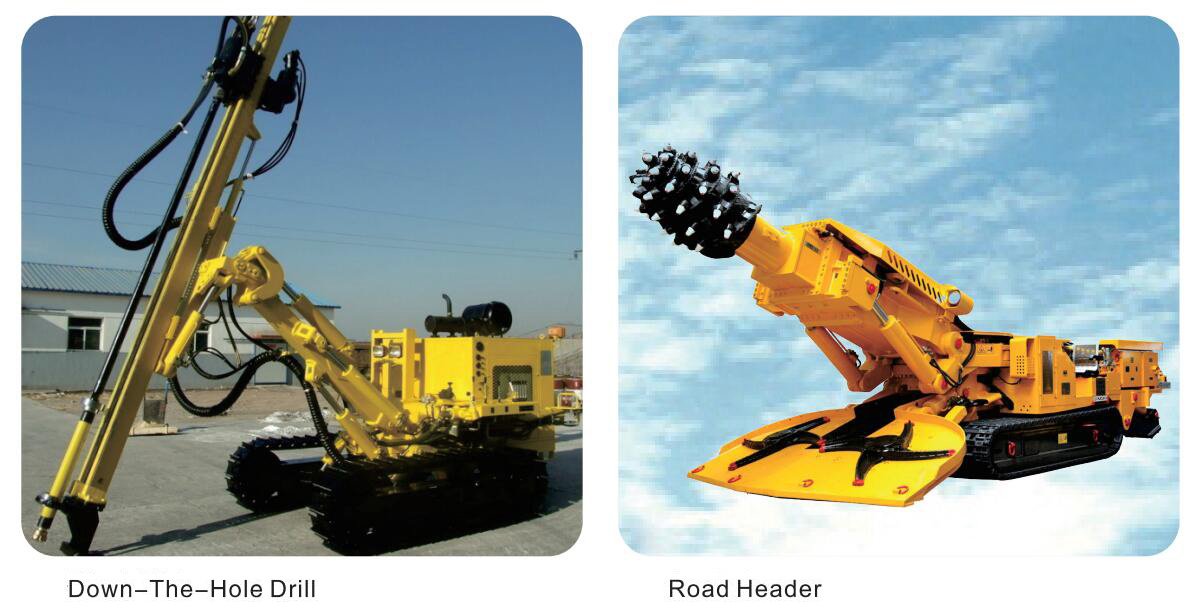

Mining Machinery: Scraper, Road Header, Heavy Duty Handling Car, Coal Mine Drill.

Special Vehicles: Fire Engine.

Poclain MS05 High Flow Hydraulic Motor Radial Piston shaft Smooth And Reliable Operation

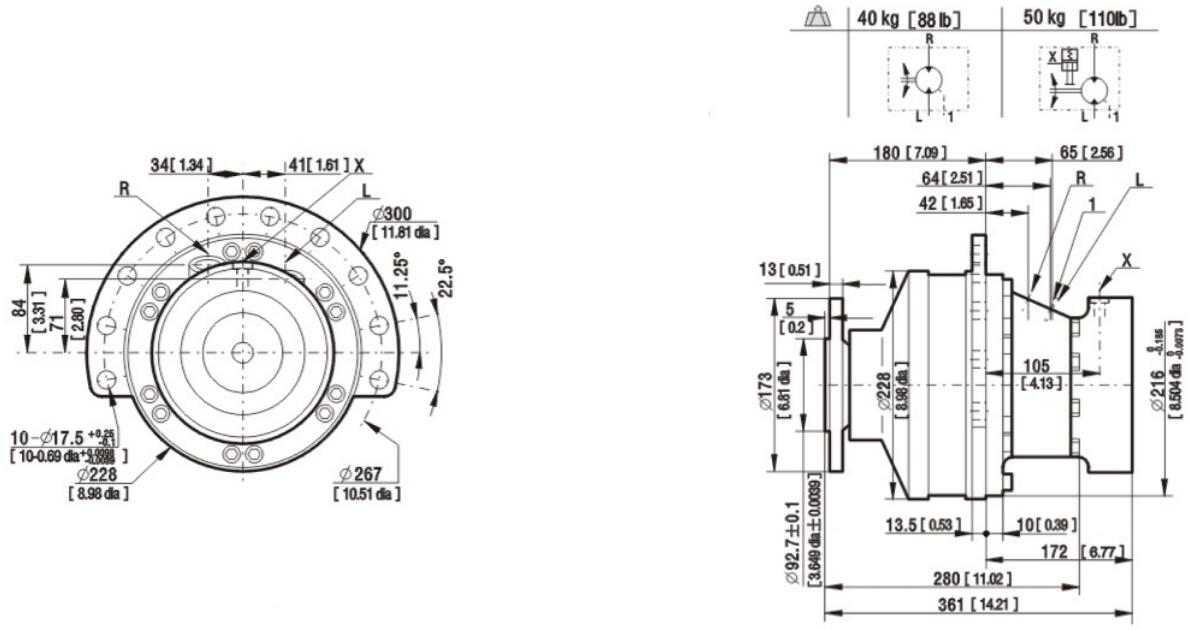

MS05 Connection Dimension

Poclain MS05 High Flow Hydraulic Motor Radial Piston shaft Smooth And Reliable Operation

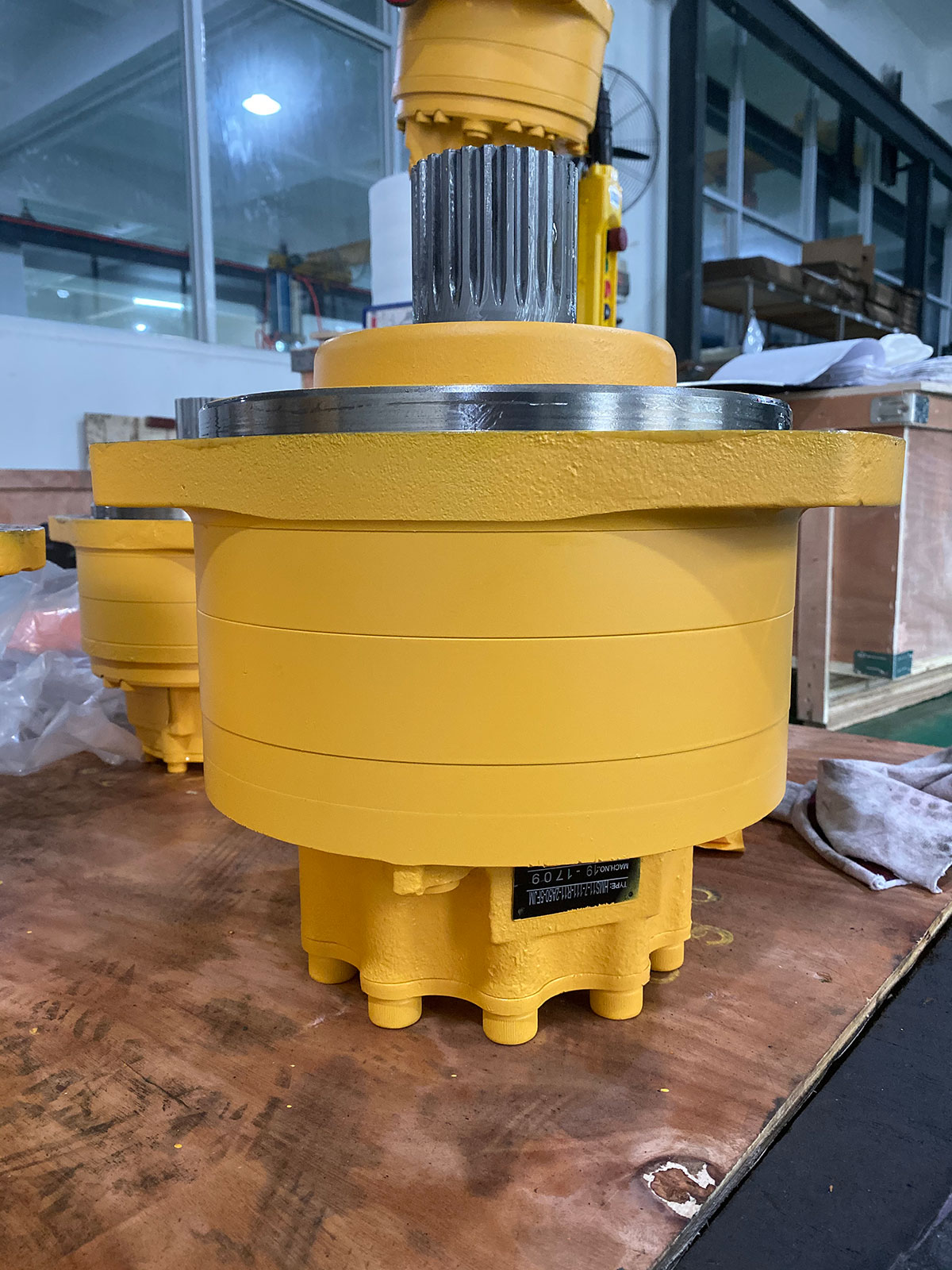

High precision testing facilities and experienced inspectors.
