Heavy Low Speed High Torque Hydraulic Motor MS83 0 - 65 R/Min For Steel Rolling Mill

Product Categories
Ningbo Helm Tower Noda Hydraulic Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Heavy Low Speed High Torque Hydraulic Motor MS83 0 - 65 R/Min For Steel Rolling Mill

Brand Name : Helm Tower

Model Number : MS83

Certification : ISO 9001

Place of Origin : NINGBO

MOQ : 1 PCS

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 300 units per month

Delivery Time : 30 working days

Packaging Details : Standard Export Wooden Case

Type : Low Speed High Torque Hydraulic Motor

Color : Customized

Torque range : 21700-32550 N. m

Max pressure : 31.5 MPa

Warranty : 1 Year

Condition : New

Contact Now

Heavy Machinery Low Speed High Torque Hydraulic Motor Poclain MS83 0-65 R/Min For Steel Rolling Mill


Features:

MS83 HYDRAULIC PISTON MOTOR
1)Radial piston type,low speed,high torque
2)Modular design, High efficiency
3)High pressure and smooth running even at very low speeds.
4)Permissible Radial and Axial load, Motor with multi-disc brake,
5)Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output


Displacement diagram:

Displacement Group 8 0 2
Displacement(ml/r) 6679 8328 10019
Theoretical torque a 10Mpa(N.m) 10620 13242 15930
Rated speed(r/min) 63 50 40
Rated pressure(Mpa) 25 25 25
Rate torque(N.m) 21700 27050 32550
Max pressure(Mpa) 31.5 31.5 31.5
Max torque(N.m) 27050 33750 40600
Speed range(r/min) 0-65 0-52 0-43
Max power(kW) standard displacement is 220kw,variable displacement priority rotation 135kw

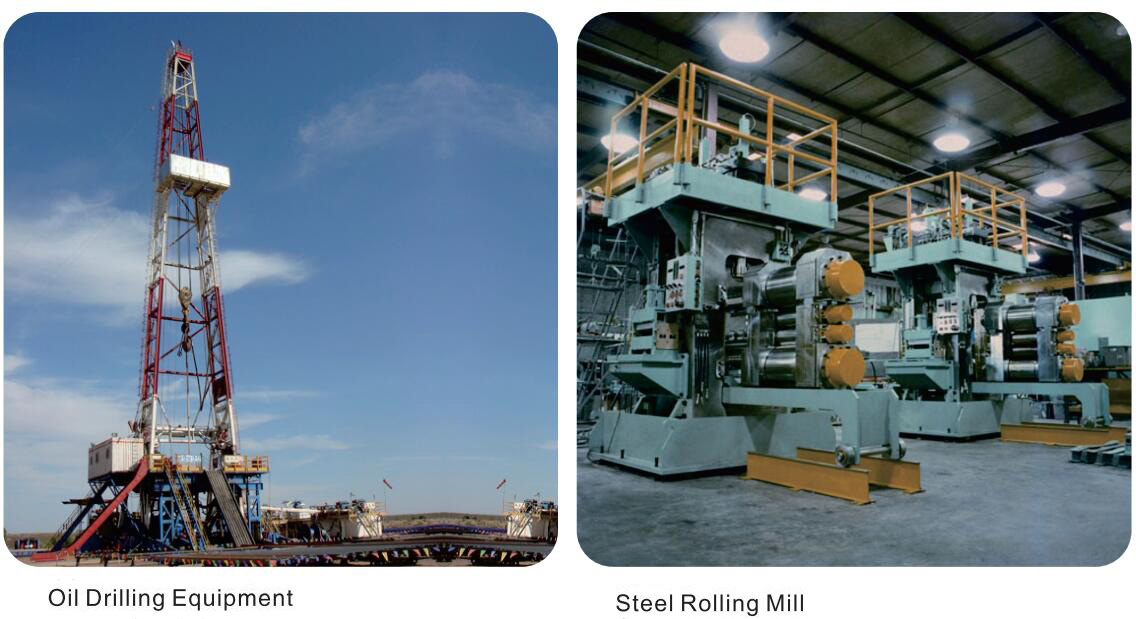

Applications:

Construction Machinery
Shield Machine, Forging Manipulator,Bucket Wheel Machine,Oil Drilling Equipment
Mining Machinery
Heavy duty handling car,coal mine drill
Marine Machinery
Marine Deck Crane, Gantry Crane Equipment.

Heavy Low Speed High Torque Hydraulic Motor MS83 0 - 65 R/Min For Steel Rolling MillHeavy Low Speed High Torque Hydraulic Motor MS83 0 - 65 R/Min For Steel Rolling Mill

MS83 Connection Dimension


Heavy Low Speed High Torque Hydraulic Motor MS83 0 - 65 R/Min For Steel Rolling Mill

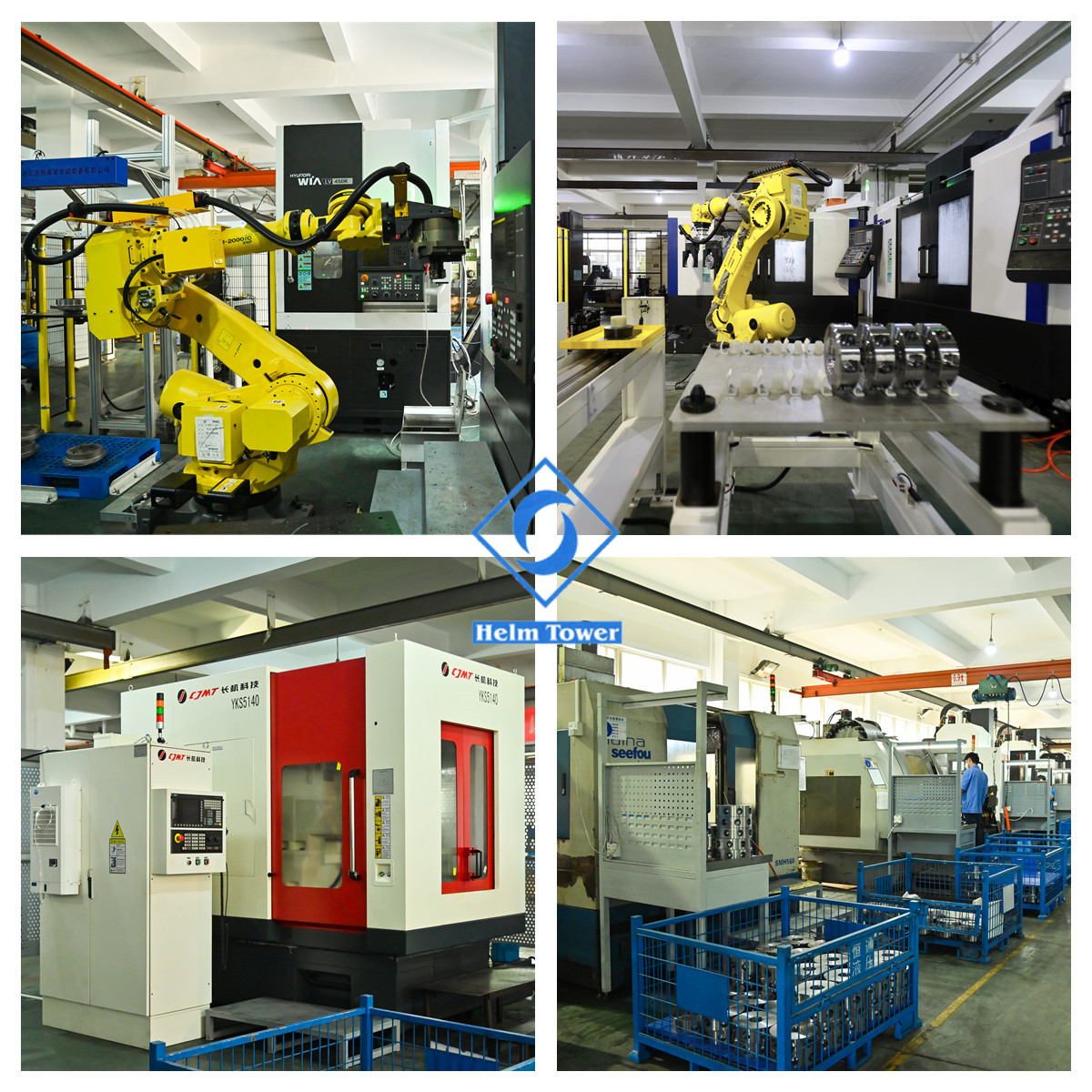

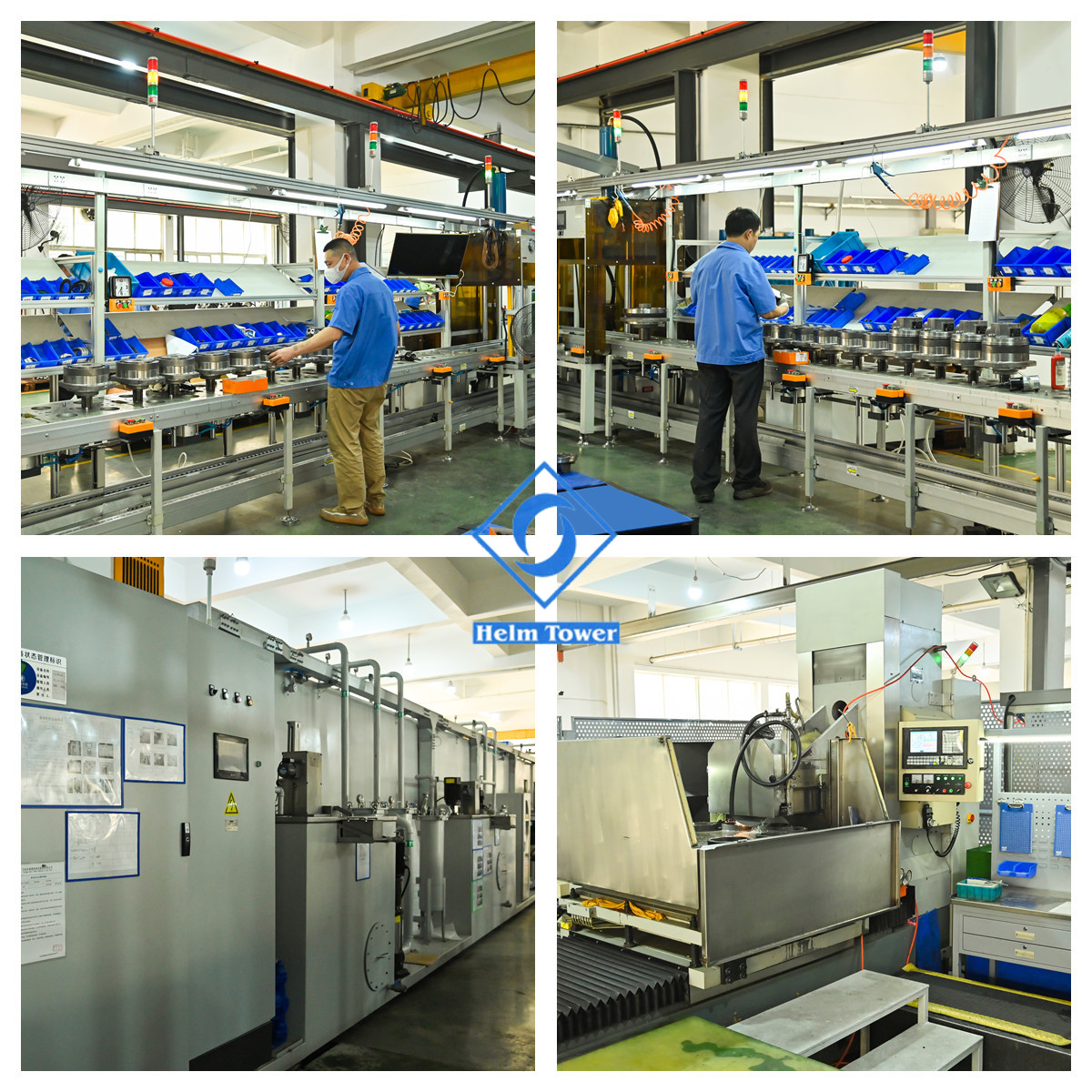

Workshop View:
Heavy Low Speed High Torque Hydraulic Motor MS83 0 - 65 R/Min For Steel Rolling Mill
Heavy Low Speed High Torque Hydraulic Motor MS83 0 - 65 R/Min For Steel Rolling Mill
Heavy Low Speed High Torque Hydraulic Motor MS83 0 - 65 R/Min For Steel Rolling Mill

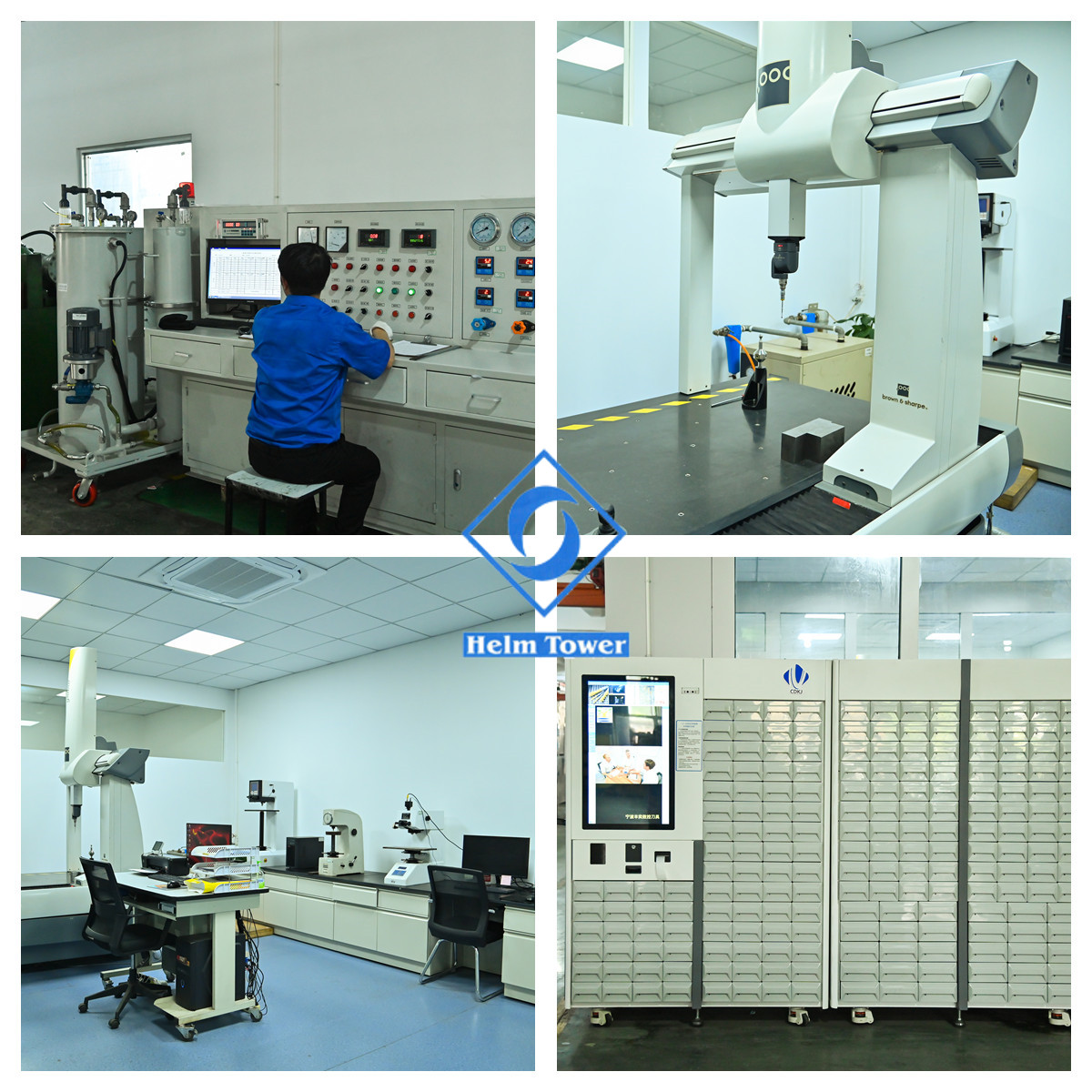

Quality Control:
Heavy Low Speed High Torque Hydraulic Motor MS83 0 - 65 R/Min For Steel Rolling Mill
